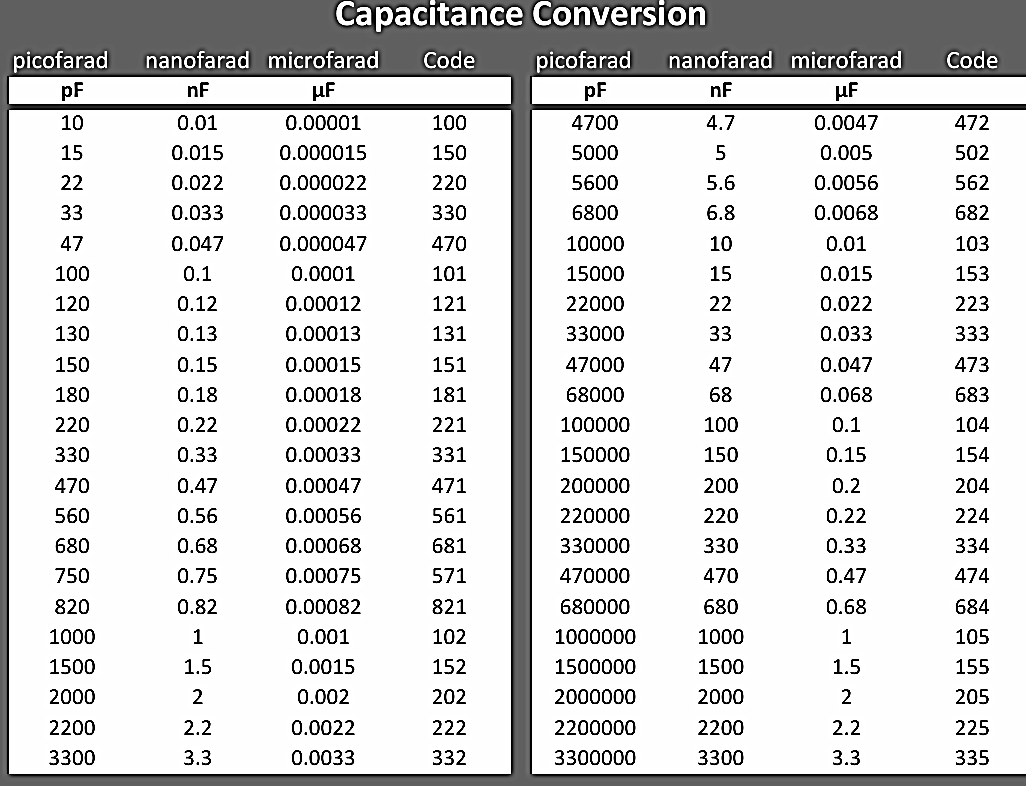

Capacitance Conversion Chart

[Hi-Fi-Mogul]

I found this at Digi-Key, and made it larger for
easier reading and printing.

It will fit on a standard 8.5 x 11 size paper.

[electra225]

That is a valued piece of information, Mr. Mogul! Thanks for sharing it! I see we may need to add a category to Downloads. "Charts and Conversions". What say ye? This information should be somewhere it could be easily accessed. Leaving it here in addition to in Downloads, maybe?

Rex has a tube chart he is looking for an appropriate spot for. This may kill two birds with one stone.....

[Hi-Fi-Mogul]

Greg,
Yes, I think a Charts and Conversions section in
Downloads is useful !

Let us know when that is established, and I'll place
this in it.

[electra225]

I have a poll going in Chat and the moderators need to mull this over how we want to set it up. Thank you for your kind offer of contribution. We'll certainly look forward to it......

Much of the information in Charts should also be in Getting Started, like you did this one. I can see it serving a dual purpose.

[hermitcrab]

How many pages are there?... this only goes up to 3.3 uf wheres the rest?
