1958 CG with louvers

[Hydrolastic]

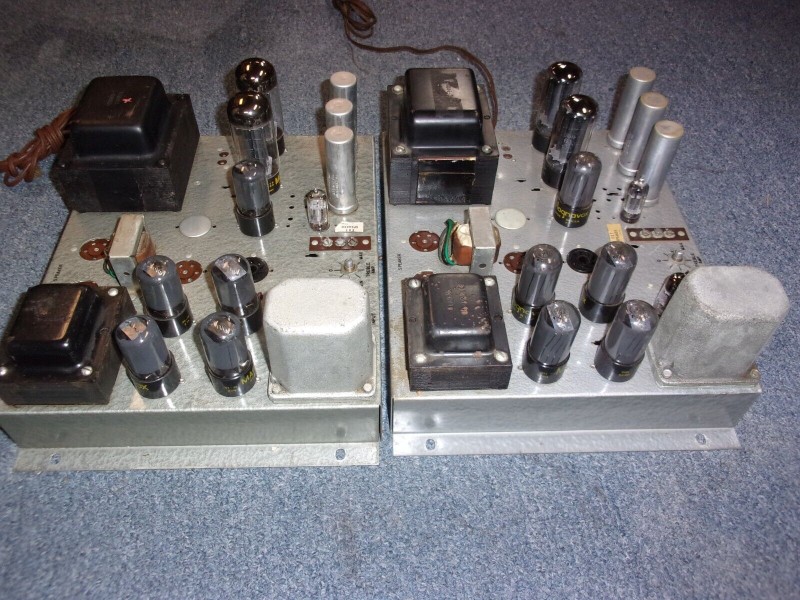

Hello Guys. This is my favorite of all the consoles! I got it from Charles here. It doesn't run it needs a recap and a very thorough going through. I am saving it for when I am better at doing restorations I am starting this thread but it will be very long term prolly 5 years from now.I did get it going once but it sounded very strange and I was really worried about a fire or some kind of damage. On Ebay I had been looking at a set of amps that I am pretty sure are a match for it. So I purchased them. It was a lot but I have not seen a set before and I know I will need parts for mine. They arrived today, amp179 it said but I am pretty sure its a Amp 148 and its mate an Amp 150. But I need to make sure so take a look and see if you recognize them. They look identical to the ones I have.

[electra225]

That's a nice one, Hydro! Good luck with your restoration efforts. We are here to help if you need it. Thanks for the pictures!

[TC Chris]

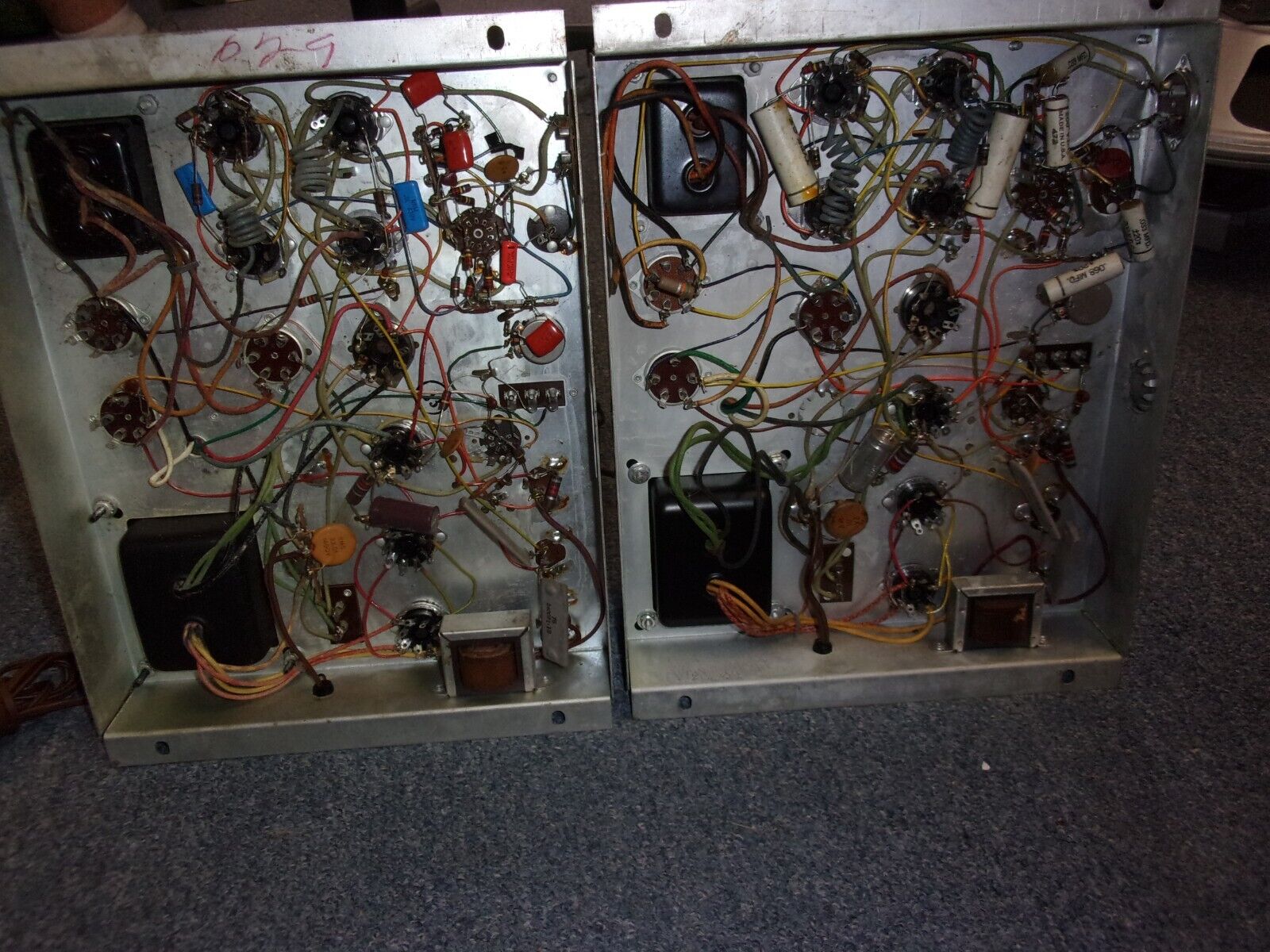

I can see that one of your amps--the left one in the photo--has been recapped already (can't tell about the filter electrolytics).

Chris Campbell

[chazglenn3]

I'm so happy that the Concert Grand went to a good home and that it will be restored to it's former greatness! I knew I would never get around to the restoration myself. I have no doubt that Aaron will get it done! Now I need to find a home for the 1965 Fisher Ambassador VII that I'm not going to get around to!

[Hydrolastic]

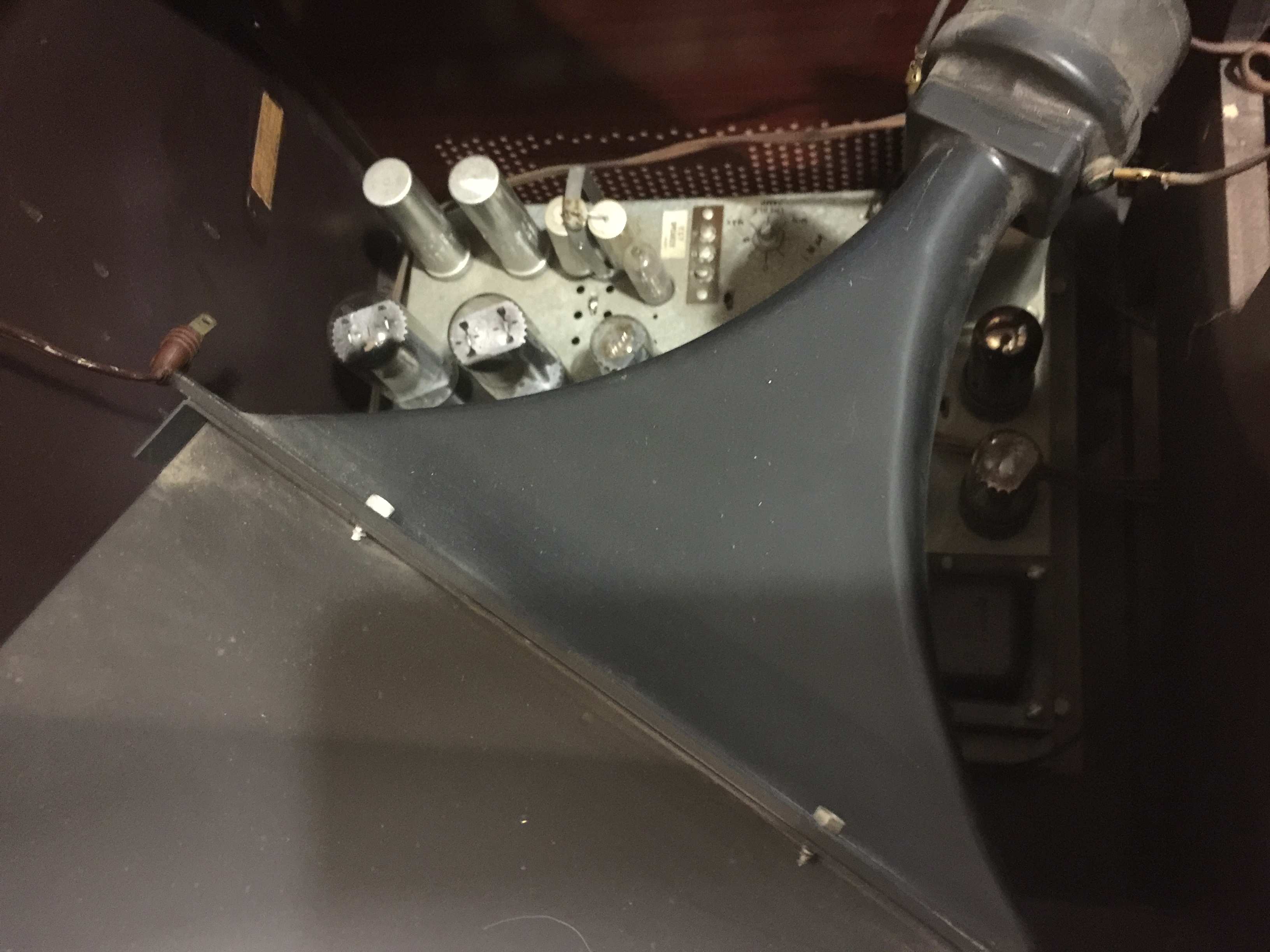

Hello guys. I think I will try and see the Amp numbers today to verify what they are. There is evidence that the console has had problems in the past. the (electrolytics ?) have a weird thing, some kind of repair.

[TC Chris]

Looks like it was a dual-section electrolytic that the repair person could not find an exact replacement for, so they used part of the original can to hold the two replacements--ones that were larger than the current options, so the can could not be "re-stuffed."

Chris Campbell

[electra225]

Using Nichicon PZ series caps will allow you to restuff a four-section cap commonly found on Magnavox chassis. These caps utilize 5MM bodies, so they are skinnier than your normal caps. Buy radial lead PZ's and you are all set. I also like using at least 500 volt electrolytics in Magnavox power supplies. Magnavox chassis with that gray hammertone finish were distinctive in apprearance.

[Hydrolastic]

Hello, I have to check specs but have you seen these? https://hayseedhamfest.com/collections/ ... 0-30-10-20 Could be useful if they match.

[William]

That's good to know, Aaron, thanks for sharing.

Bill

[TC Chris]

For frugal cheapskates like me, restuffing the old cans or hiding new caps under the chassis is much cheaper, and if done carefully, leaves the device looking stock.

Chris Campbell

[hermitcrab]

I gotta say , I like the styling of this maggie... as popular as the 50's sets are to collectors , I was never a fan of the center turntable being mounted under the receiver that you almost have to get on your knees to play records ...stupid design.. IMO but to each his own,,,,

[Firedome]

I much prefer "top loading" the contorl panel as well as the record playe - better ergonomics.

I too prefer to put multi-section caps individually under the chassis to save $$ if there's room to do so. The new multis from AES and the like are about $50 with shipping... fugeddaboudit!
